High-pressure sewer cleaning installation

ROM EcoFit PTO - All-Terrain edition

Name: ROM
Rating: 9.1 (482 reviews)

Articlenumber: 31700

All-round machine with two powerful high-pressure pumps and a powerful water heater (90º)
Maximum cleaning power (450 bar - 30 l/min) for the removal of rust, ice and grease in pipes (such as is found in the stand pipes of high-rise buildings)
Optimal flushing effect (160 bar - 86 l/min) for larger (sewer) pipes

The ROM EcoFit Power Take-Off is also available in a special version for maximum versatility of use. The well-equipped 'All-Terrain edition' is a real all-rounder and makes light work of the toughest jobs. The all-round machine is equipped with two powerful high-pressure pumps and a hot water unit for maximum freedom of choice.

Performance figures

- 450 bar/30 l/min & 160 bar/86 l/min | PTO: vehicle-driven “Emission compliant”

Characteristics

Characteristics
- Insertion range: Up to Ø600 mm
- Drive: PTO (vehicle driven) - “Emission compliant”
- High-pressure pump – 2 units: Speck | 450 bar/30 l/min & 160 bar/86 l/min

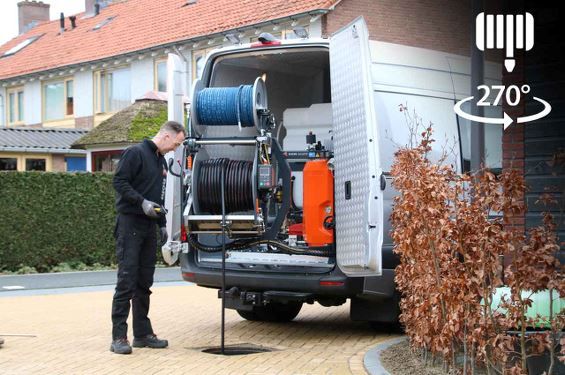

- Two 270˚ rotatable and hydraulically-operated reels (180˚ +90˚)
- Reel 1:
  - Hydraulically-driven high-pressure reel
  - Suitable for max. 120 m ½”, 120 m 5/8” or 120 m 3/4” Trelljet
  - Delivered with high-pressure hose: 80m 5/8" (ND16)
  - Hose entry guide, rotating iROM control system and stainless steel drip tray
- Reel 2:
  - Hot water unit, incl. hydraulically-driven reel with 80 m 3/8” (ND10) heat-resistant hose. Suitable up to 500 bar (instead of filling hose reel)
- Reel 3 (optional):
  - Extra, manually-operated water filling hose reel incl. 50 m 3/4” water hose (ND20)
- High-pressure pump protection: Dry running protection
- Pressure regulator: continuously adjustable
- Water tank: 1000 litres
- Operation: iROM control system, incl. daylight display with, among other things, hour and rev counter and automatic service interval indicator.
- Remote control: optional 8 or 10 buttons (press on/off, stepless speed control, information feedback via LED, emergency stop and more)
- Weight: 1000 kg
- Dimensions (l x w x h): 2030 x 1365 x 1585mm
- Spray nozzles: spray nozzle 33 fore with rear drive and spray nozzle 36 rear
- Accessories: Spray lance with flat jet spray nozzle, spray nozzle rack mounted on machine
- Colour: orange cover, anthracite metal frame

Standard equipped with

Standard equipped with
- Clean with cold or hot water, thanks to a powerful water heater (90º)
- Two high-pressure pumps: Use 1st high-pressure pump for maximum cleaning pressure: 450 bar - 30 l/min Simultaneously switch on the 2nd high-pressure pump for increased flushing capacity: 160 bar - 86 l/min
- Two 270˚ rotatable and hydraulically-operated reels (180˚+90˚) (optional 3rd reel)
- 270˚ rotating hydraulically-operated high-pressure reel with hot water supply
- High-pressure hose reel 1: 80 m 5/8” sewer cleaning hose (ND16)
- High-pressure hose reel 2: 80 m 3/8” hot water-resistant high-pressure hose (ND 10)
- Filling hose reel: optional as a third reel, with 50 m 3/4” water hose
- Large 1000-litre water tank
- Electronic start-up system
- iROM control system, incl. daylight display and waterproof touch-key operation (IP65)
- Dry running protection for the high-pressure pump
- Spray nozzles
- Various accessories, such as a stepless pressure regulator, pressure gauge and water filter with automatic water stop and flushing element
- Spray lance with flat jet spray nozzle
- Spray nozzle rack mounted on machine
